True® Lithium Smart Battery Isolator

Item number: IP-DS14013.213.5MD
Suggested retail price $104.95

Features:

NOW features PEP® making it the most efficient Lithium battery isolator on the market.

1. For 12V and 140A vehicles
2. Designed for lithium dual battery systems, including lithium, AGM, and lead-acid batteries
3. Supporting all types of 12V charging systems
4. Works with all types of batteries including Lithium
5. The best lithium battery isolator that provides ignition surge protection

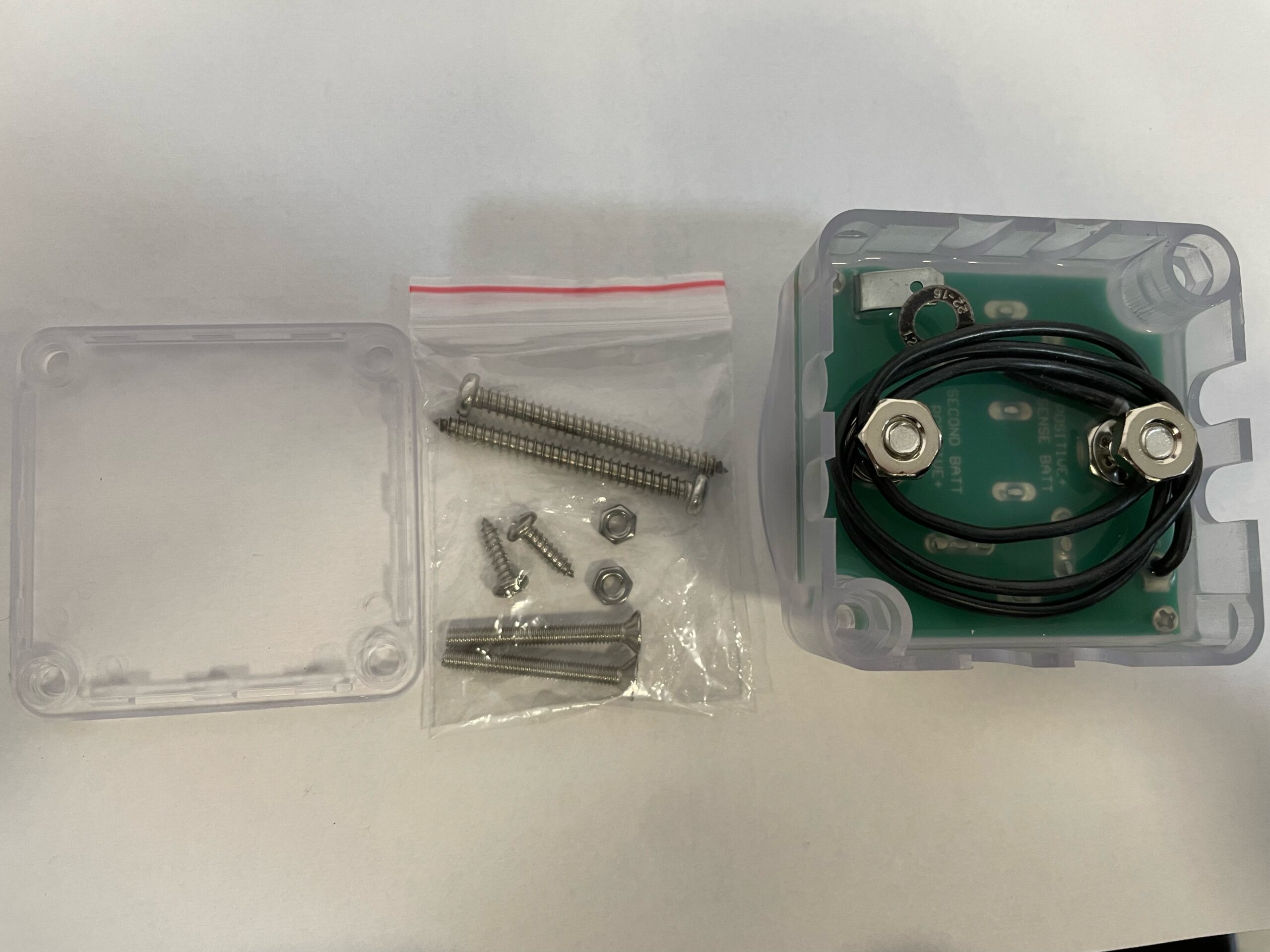

6. Ultra-Simple Installation: Compact design with easy 3-wire connection
7. Smart Lithium isolator that disengaging below 13.2V to prevent accessory drain from the starter battery

Summary

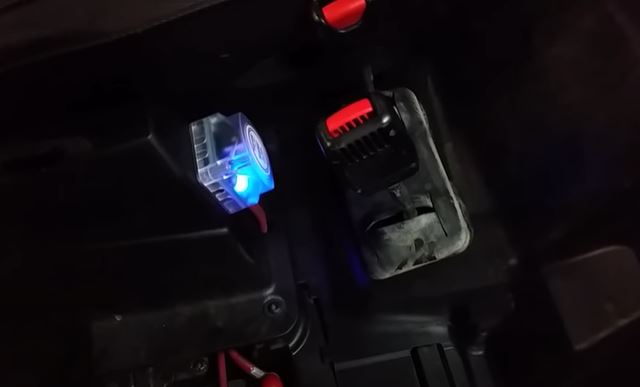

1. When the engine is running and the charging source raises the voltage of  the start battery to 13.5 volts* (cut in threshold), the True® Lithium Battery Isolation Manager (SBI) engages and connects the two batteries to charge simultaneously.   The SBI’s internal LED will glow blue.

2. When all voltage sources drop below 13.2 volts* (cut out threshold) the Lithium Smart Battery Isolator will disengage and the blue LED will go out.

3. When the SBI LED is out the batteries are separated thus preventing the power of your start battery from being drained by use of the accessories powered from the second battery.

4. When the vehicle is restarted and the start battery has recharged to 13.5 volts* the Lithium Smart Battery Isolator engages, the LED will illuminate and the second battery is connected to receive charging.

*The True® Lithium Smart Battery Isolator is programmed with a 10 second delay before engaging or disengaging.

LED Indications

On: Isolator engaged
Off: Isolator disengaged
Dimensions
2.7(L) x 2.7(W) x 1.95(H) inches
